Flat Bottom Grease Arrestors

Flat Bottom Grease Arrestors are commonly used in Butcher’s shops, Cafe’s, Restaurants, Bakeries, Take-aways etc. to remove the free grease and oils and assist in preventing pipe blockages etc. They are required by legislation in many areas.

Why fibreglass and not concrete?

As per Sydney Water requirements, all concrete / reinforced precast grease arrestors must be epoxy coated internally, annually.

Fibreglass Grease Arrestors are fabricated with a 7mm Iso-resin wall, HPR-800 Gun Rovings, Iso-Npg Gelcoat internal lining and Iso-Npg Flowcoat external finish.

Aglass Grease Arrestors do comply with the principals of the following Australian Standards.

  1. AS 5200 – 2005 – Procedures for certification of plumbing and drainage products.
  2. AS 3500:2003 – Plumbing and Drainage.
  3. AS/NZ 4494:1998 – Discharge of commercial and industrial liquid waste to sewer – General performance requirements.

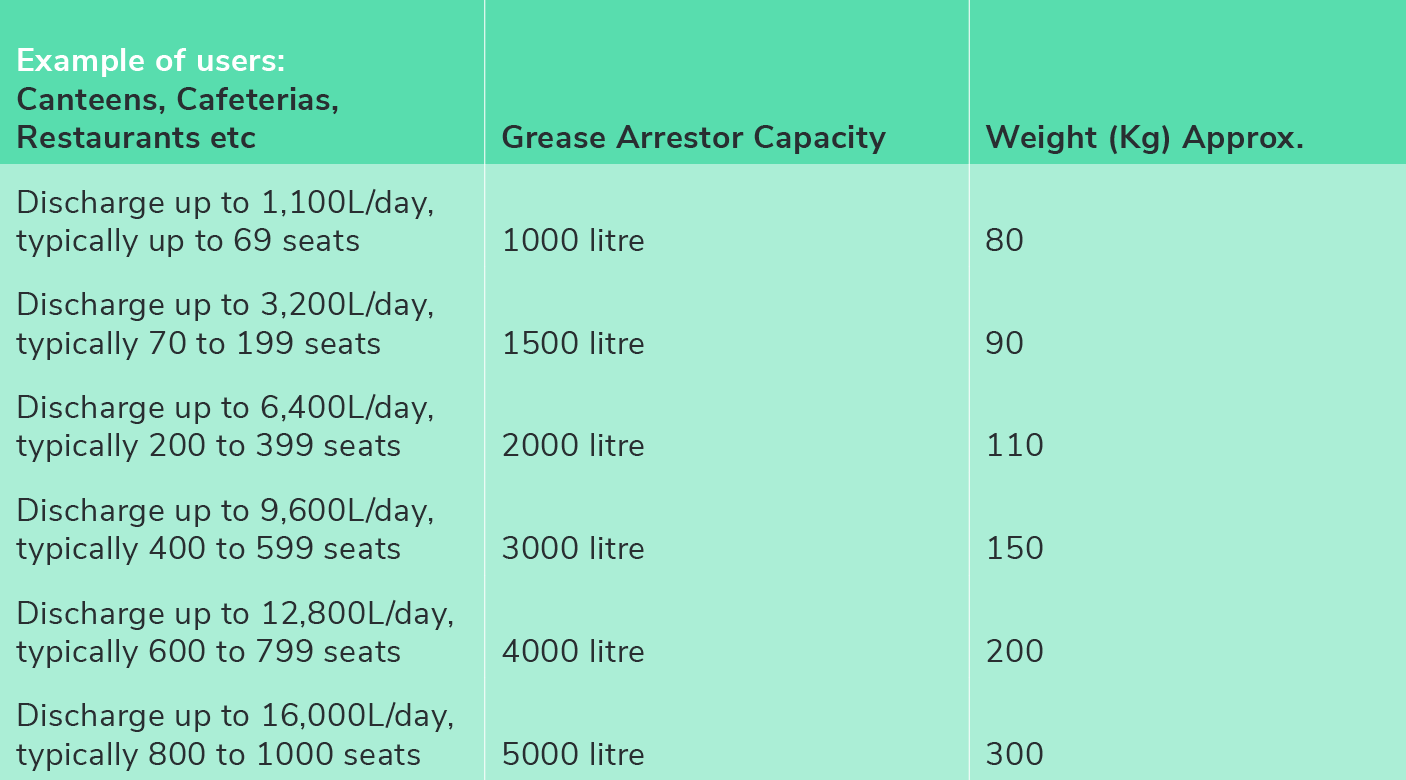

Sizes: Start at 1000 litre and up to and including 5000 litres

Construction: Heavy Duty Fibreglass

Installation: Can be installed above ground and below ground

A wide range of lids are available including:

  1. Heavy Duty Fibreglass for garden beds.
  2. Light Duty Class B – Pedestrian trafficable gas tight.
  3. Heavy Duty Class D – Cars, Trucks, Semi Trailers and Forklifts.

If gravity fall is not obtainable on a below ground unit various sizes of Risers are available.
